The PatchGuard™ Galvanic Anode
extends the life of patch repairs
- 2nd generation targeted protection
- Up to 20 years protection
- Galvanic protection for use in patch repairs
- Manufactured in the UK to ISO9001
Our Patchguard™ galvanic anodes redress the electrochemical imbalance induced through removal of contaminated concrete in patch repairs, commonly known as the Incipient Anode Effect. PatchGuard™ anodes corrode preferentially to the surrounding steel – protecting it from further corrosion damage.
PatchGuard™ combats the two main types of corrosion found in reinforced concrete structures
Carbonation induced – exposure to atmospheric carbon dioxide combined with prolonged contact to sufficient moisture and oxygen can leave steel vulnerable to corrosion.
Chloride induced – if chloride in the form of inherently mixed set accelerators or external aggressive salts permeates reinforced concrete in sufficient quantities, an aggressive form of corrosion can be initiated.
When either or both of these take hold in a structure, this can lead to the concrete cracking and being displaced as the steel reinforcement expands and pushes out. The corrosion and its effects often propagate very quickly – so it is crucial to be proactive in assessing and fixing the issue to protect the structure and maintain its asset value.
PatchGuard™ counters corrosion adjacent to the patch following patch repair but unlike traditional sacrificial anodes it is installed at the perimeter of the patch repair into the parent concrete. This significantly improves the ionic current flow from the anode through the concrete material as the parent concrete is less resistive compared to repair mortars, making the PatchGuard™ anode more efficient than traditional sacrificial anodes.
PatchGuard™ anodes are installed into the perimeter of patch repairs through the breakout area into pre drilled 25mm diameter holes at around 400mm centres. The holes are grouted with our pre mixed DuoCrete PG™ embedding mortar pre-installation. After the PatchGuard™ anodes have been inserted into the holes they are tied to the steel using the attached titanium connecting wireand the holes are capped using a standard repair mortar. Concrete repairs can then be carried out at any time after anode installation. If the repairs are carried out within two hours it is not necessary to cap off the anode holes.
How it works
Rather than the traditional approach of attaching galvanic anodes to exposed steel in the patch repair, PatchGuard™ anodes are located within the surrounding unrepaired concrete. Protective current is delivered directly to the steel outside the patch repair – which is at greatest corrosion risk as opposed to the clean steel within the patch repair.
PatchGuard Strip Anode System

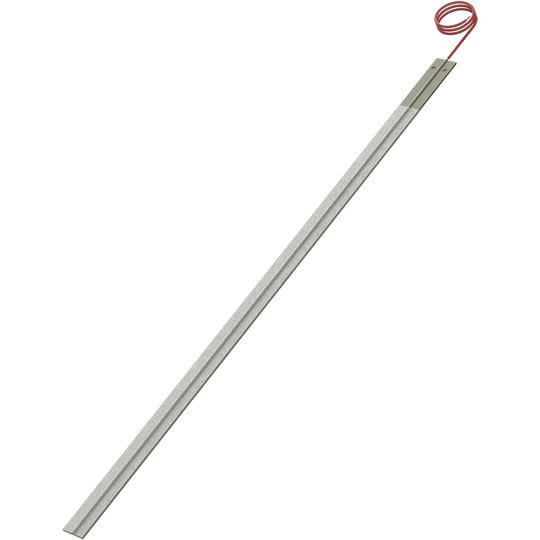

PatchGuard Strip is used to control corrosion and mitigate cracking and spalling of sound but contaminated reinforced concrete where a corrosion risk has been identified. The profile of PatchGuard Strip makes it ideal for installing into slots in the concrete cover zone or into bedding joints and provides enhanced current distribution.
|Patchguard Strip -250
|Patchguard Strip – 550
PatchGuard Technical Data Sheet
PatchGuard Installation Guide
DuoCrete PatchGuard Mortar Technical Data Sheet
Duocrete PatchGuard MSDS
Patchguard spacing guide
Steel – density – table
PatchGuard Strip Anode System
PatchGuard technical Data Sheet – PatchGuard Strips
Patchguard P Paste -Technical Data Sheet
